Smith Services, a Timken brand, is one of the largest motor service organizations in the United States.

Capabilities Summary

Testing

  • AC power: 0 to 13.2kV
  • DC power: 0 to 1200V
  • Dynamometers: fractional to 1500 HP, varies per RPM, both vertical and horizontal
  • Surge tester: 0 to 40,000V
  • High potential tester: 0 to 60,000V AC/100,000DC
  • Continuous megger: 5000V/3000 gigaohms
  • Low resistance to 1 microhm
  • Data acquisition systems including the ADAMS, ADAMS2 and ADRE system by GE Bently-Nevada
  • Core loss testing with infrared images
  • Specialized testing for MOV motors

Motor and Gear Shop

  • Motor and generator repairs to 50,000 HP
  • Vacuum Pressure Impregnation (VPI)
  • Authorized by UL for repair of hazardous duty motors
  • Climate controlled coil winding area
  • Bearing replacement
  • Shaft replacement
  • Contaminated motor repair
  • Supply of new and repair of EQ motors
  • Seismic qualification by analysis per IEEE 344

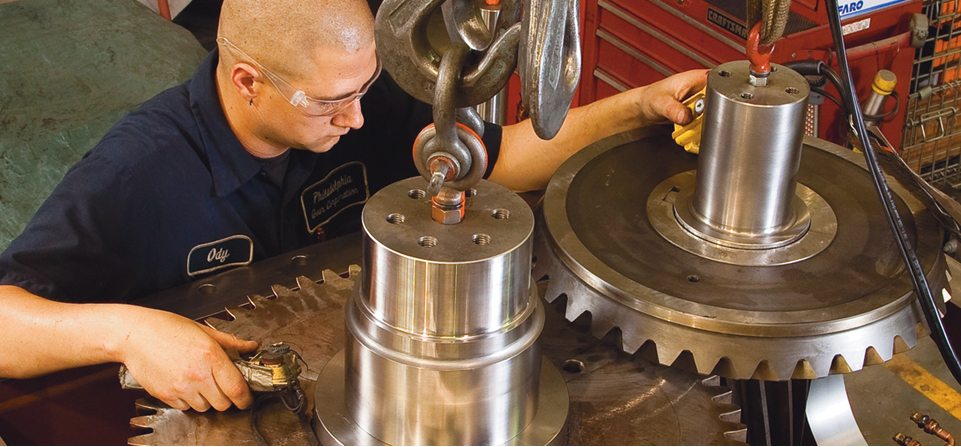

  • Repair and upgrade of safety and non-safety gearboxes

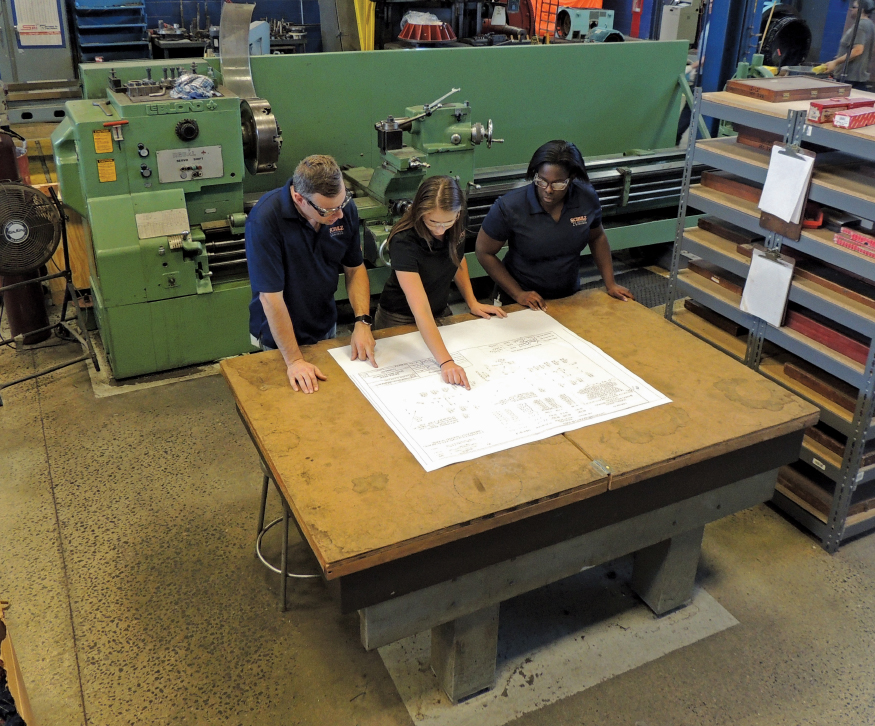

Machine Shop

  • Large machining capabilities
  • Babbitt bearing repairs
  • Vertical & horizontal digital boring mills
  • Dynamic balancing to 60,000 lbs.
  • Welding – Tig, Mig, Arc & Gas
  • Manufacture and replace shafts of AISI 4140 material for MOV motors that have had keys replaced with AISI 4140 material in high impact loading applications (IN 94-10)
